Retrofittable motor for ball valve (remote control via contact controller)

SKU: BVSDRY02
Version: 1.0

↑

1. Product Description

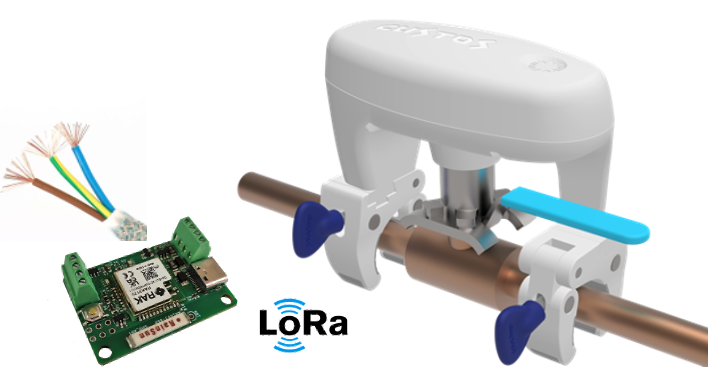

This motor converts existing and installed ball valves into intelligent water control devices. Thanks to the innovative clamp mechanism, it can be installed on shut-off valves with a pipe diameter between 0.5 and 1.5 inches within minutes, without the need for additional tools, and can be removed just as easily. A patented coupling mechanism allows for torques of up to 8 Nm, enabling it to function even with rusty and old valves.

The servo motor is waterproof and can be used in damp, dirty, and outdoor environments. In the open position, the motor automatically performs valve training once a week (closing/opening by 1/8 turn to remove dirt and scale). The device is also capable of measuring the rotation angle and detecting the end positions of the lever. It approaches the end positions slowly to avoid friction and unnecessary mechanical stress. It is powered by an external 12V power supply through a waterproof coupling.

The device is controlled either through the local button or a switch input on the 'Dry Contact Controller.' The connection between the Dry Contact Controller and the actual motor is established through an encrypted LoRa wireless connection. This robust wireless technology allows for seamless motor control through multiple walls or in the garden.


↑

2. Scope of Delivery


↑

3. Technical Data
